Implant Drills & Burs

Black drill

7Twisted Drill Black

A surgical drill with increased abrasion resistance, corrosion resistance, durability and hardness with DLC coating.



It comes with a movable stopper which allows for the length of  the drill to be adjusted and a dedicated wrench.

The adjustment range for the stopper is between 6 – 11 mm for short, and 11 – 16 mm for long.











What’s DLC?



DLC is short for “Diamond Like Carbon”, and it is technology that coats a nano-level hard film with properties that resemble that of diamonds onto metallic surfaces. While having approximately 5 times the hardness compared to existing products, it has shown overwhelming low friction factor and it is recognized as the most technologically advanced among the many surface treatment techniques  available.






Twist Drills Black Shor External Cooling



blacktuist2-1









Stainless steel   Autoclabvable(Up to 132℃)









SizeExternal Diameter(φD)Length of cutting part(L1)Overall Length(L2)
Twisted Drill Black φ2.0Sφ2.011.5㎜33.0㎜
Twisted Drill Black φ2.6Sφ2.611.5㎜33.0㎜
Twisted Drill Black φ2.8Sφ2.811.5㎜33.0㎜
Twisted Drill Black φ2.9Sφ2.911.5㎜33.0㎜
Twisted Drill Black φ3.0Sφ3.011.5㎜33.0㎜
Twisted Drill Black φ3.1Sφ3.111.5㎜33.0㎜
Twisted Drill Black φ3.2Sφ3.211.5㎜33.0㎜
Twisted Drill Black φ3.3Sφ3.311.5㎜33.0㎜
Twisted Drill Black φ3.4Sφ3.411.5㎜33.0㎜
Twisted Drill Black φ3.5Sφ3.511.5㎜33.0㎜
Twisted Drill Black φ3.6Sφ3.611.5㎜33.0㎜
Twisted Drill Black φ3.7Sφ3.711.5㎜33.0㎜
Twisted Drill Black φ3.8Sφ3.811.5㎜33.0㎜
Twisted Drill Black φ4.0Sφ4.011.5㎜33.0㎜
Twisted Drill Black φ4.2Sφ4.2S11.5㎜33.0㎜
Twisted Drill Black φ4.5Sφ4.511.5㎜33.0㎜








Twist Drills Black Long External Cooling



blacktuist1-1









Stainless steel   Autoclabvable(Up to 132℃)

SizeExternal Diameter(φD)Length of cutting part(L1)Overall Length(L2)
Twisted Drill Black φ2.0Lφ2.016.5㎜38.0㎜
Twisted Drill Black φ2.8Lφ2.816.5㎜38.0㎜
Twisted Drill Black φ3.1Lφ3.116.5㎜38.0㎜
Twisted Drill Black φ3.2Lφ3.216.5㎜38.0㎜
Twisted Drill Black φ3.3Lφ3.316.5㎜38.0㎜
Twisted Drill Black φ3.5Lφ3.516.5㎜38.0㎜
Twisted Drill Black φ3.8Lφ3.816.5㎜38.0㎜






Twist Drills For Guide Black



blackguid1









Stainless steel   Autoclabvable(Up to 132℃)

When using the 10㎜ surgical guide, it is marked to drill depths of 7㎜, 8.5㎜, 10㎜.







SizeExternal Diameter(φD)Length of cutting part(L1)Overall Length(L2)
Twisted Drill Black φ2.0φ2.022.0㎜36.0㎜
Twisted Drill Black φ3.0φ3.022.0㎜36.0㎜








Step Drills For Guide Black





blackdantuki1









Stainless steel   Autoclabvable(Up to 132℃)

Simplification of drill step has been made possible.

It is ideal for pilot holes for tapered implants.







SizeExternal Diameter(φd1)External Diameter(φd2)Length of cutting part(L1)Overall Length(L2)
Step Drill Black For Guide φ2.4/φ2.8φ2.4φ2.822.0㎜36.0㎜
Step Drill Black For Guide φ2.8/φ3.2φ2.8φ3.222.0㎜36.0㎜
Step Drill Black For Guide φ3.2/φ3.6φ3.2φ3.622.0㎜36.0㎜
Step Drill Black For Guide φ3.8/φ4.2φ3.8φ4.222.0㎜36.0㎜
Step Drill Black For Guide φ4.2/φ4.6φ4.2φ4.622.0㎜36.0㎜

















Twisted Drills

tuisutzentai1tuisutoatama1



The drills with internal cooling system should be used also with external cooling .
Drill speed should be controlled from 600rpm(thick drills) up to 1000rpm(for fine drills).
Cutting efficiency is coming bad by each use and bad drill will cause heat damages against bone .

Only good drills should be used for operation . For very hard bones , it is recommended to use surgical burs prior to implant drills .
Surgical burs will help easy drilling and long life . The fix screw of drill stopper is so small and it can not be bear a strong force .

Drills can be used also without stopper .










Twist Drills Short/Internal Cooling



tuisutin1-1









Stainless steel   Autoclavable(Up to 132℃)

Marking Position : From the blade part tip  6㎜, 7㎜,8㎜,9㎜,10㎜,11㎜



The stopper of short drill can be adjustable 6-11㎜.

SizeExternal Diameter(φD)Length of cutting part(L1)Overall Length(L2)
Twisted Drill 2.0SI Internal Cooligφ2.011.5㎜33.0㎜
Twisted Drill 2.8SI Internal Cooligφ2.811.5㎜33.0㎜
Twisted Drill 3.1SI Internal Cooligφ3.111.5㎜33.0㎜
Twisted Drill 3.2SI Internal Cooligφ3.211.5㎜33.0㎜
Twisted Drill 3.3SI Internal Cooligφ3.311.5㎜33.0㎜
Twisted Drill 3.5SI Internal Cooligφ3.511.5㎜33.0㎜
Twisted Drill 3.8SI Internal Cooligφ3.811.5㎜33.0㎜
Twisted Drill 4.0SI Internal Cooligφ4.011.5㎜33.0㎜
Twisted Drill 4.2SI Internal Cooligφ4.211.5㎜33.0㎜
Twisted Drill 4.5SI Internal Cooligφ4.511.5㎜33.0㎜


Twist Drills Long/Internal Cooling



tuistin2-1









Stainless steel   Autoclavable(Up to 132℃)

Marking Position : From the blade part tip  11㎜, 12㎜,13㎜,14㎜,15㎜,16㎜



The stopper of Long drills can be adjustable 11-16㎜.

SizeExternal Diameter(φD)Length of cutting part(L1)Overall Length(L2)
Twisted Drill 2.0LI Internal Cooligφ2.016.5㎜38.0㎜
Twisted Drill 2.8LI Internal Cooligφ2.816.5㎜38.0㎜
Twisted Drill 3.1LI Internal Cooligφ3.116.5㎜38.0㎜
Twisted Drill 3.2LI Internal Cooligφ3.216.5㎜38.0㎜
Twisted Drill 3.3LI Internal Cooligφ3.316.5㎜38.0㎜
Twisted Drill 3.5LI Internal Cooligφ3.516.5㎜38.0㎜
Twisted Drill 3.8LI Internal Cooligφ3.816.5㎜38.0㎜


Twist Drills Short/Exrernal Cooling



tuist1-1







Stainless steel   Autoclavable(Up to 132℃)

Marking Position : From the blade part tip  6㎜, 7㎜,8㎜,9㎜,10㎜,11㎜



The stopper of short drill can be adjustable 6-11㎜

SizeExternal Diameter(φD)Length of Cutting part(L1)Overall Length(L2)
Twisted Drill 2.0S External coolingφ2.011.5㎜33.0㎜
Twisted Drill 2.8S External coolingφ2.811.5㎜33.0㎜
Twisted Drill 3.1S External coolingφ3.111.5㎜33.0㎜
Twisted Drill 3.2S External coolingφ3.211.5㎜33.0㎜
Twisted Drill 3.3S External coolingφ3.311.5㎜33.0㎜
Twisted Drill 3.5S External coolingφ3.511.5㎜33.0㎜
Twisted Drill 3.8S External coolingφ3.811.5㎜33.0㎜
Twisted Drill 4.0S External coolingφ4.011.5㎜33.0㎜
Twisted Drill 4.2S External coolingφ4.211.5㎜33.0㎜
Twisted Drill 4.5S External coolingφ4.511.5㎜33.0㎜
Twisted Drill 5.5S External coolingφ5.511.5㎜33.0㎜


Twist Drills Long/External Cooling



tuisut2-1









Stainless steel   Autoclavable(Up to 132℃)

Marking Position : From the blade part tip  11㎜, 12㎜,13㎜,14㎜,15㎜,16㎜



The stopper of Long drills can be adjustable 11-16㎜.





SizeExternal Diameter(φD)Length of cutting part(L1)Overall Length(L2)
Twisted Drill 2.0L External Coolingφ2.016.5㎜
38㎜
Twisted Drill 2.8L External Cooling φ2.816.5㎜38㎜
Twisted Drill 3.1L External Cooling φ3.116.5㎜38㎜
Twisted Drill 3.2L External Cooling φ3.216.5㎜38㎜
Twisted Drill 3.3L External Cooling φ3.316.5㎜38㎜
Twisted Drill 3.5L External Cooling φ3.516.5㎜38㎜
Twisted Drill 3.8L External Cooling φ3.816.5㎜38㎜

Trephine Burs

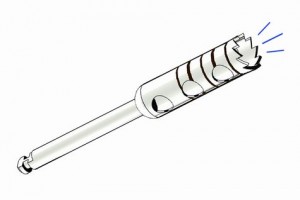

26-1Trephine Burs do not have blade at center , thus it will be rather difficult to get smooth cutting for a start . Enough exercise is recommended before use .
After Trephine Burs penetrate into bone , then smooth cutting is available . To avoid choking on bone inside  Trephine Bur , pull of Trephine Burs up and down , so that bone will always remain at patient . Remained bone can be collected by surgical curettes . Enough cooling and possibly low speed is recommended to avoid heat damage against bone .











16-1Stainless steel   Autoclavable(Up to 132℃)Marking position : From blade part  2㎜,4㎜,6㎜,8㎜,10㎜

Internal Diameter : External Diameter – 0.8㎜









SizeExternal Diameter(φD1)Internal Diameter(φD2)Overall Length
Trephine Bur 2.4 Internal Coolingφ2.4φ1.638.0㎜
Trephine Bur 2.7 Internal Coolingφ2.4φ1.638.0㎜
Trephine Bur 3.0 Internal Coolingφ3.0φ2.238.0㎜
Trephine Bur 3.3 Internal Coolingφ3.3φ2.538.0㎜
Trephine Bur 3.8 Internal Coolingφ3.8φ3.038.0㎜
Trephine Bur 4.3 Internal Coolingφ4.3φ3.538.0㎜
Trephine Bur 5.0 Internal Coolingφ5.0φ4.238.0㎜
Trephine Bur 6.0 Internal Coolingφ6.0φ5.238.0㎜

Bone Trephines

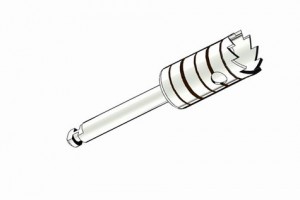

26-2-2Bone Trephine is used for collection of big volume of  bone .

Enough exercise is recommended before  use .



























16-2-2



Stainless steel Autoclabvable(Up to 132℃)
Marking position : From the blade part tip  2㎜,2.3㎜,4㎜,4.5㎜,6㎜,6.3㎜,8㎜,8.5㎜,10㎜,10.3㎜





External Diameter : Internal Diameter + 0.8㎜











SizeExternal Diameter(φD1)Internal Diameter(φD2)Overall Length
Bone Trephine 5.0 External Coolingφ5.8φ5.028.0㎜
Bone Trephine 6.0 External Coolingφ6.8φ6.028.0㎜
Bone Trephine 8.0 External Coolingφ8.8φ8.028.0㎜
Bone Trephine 10.0 External Cooling φ10.8φ10.028.0㎜
Bone Trephine 12.0 External Coolingφ12.8φ12.028.0㎜

Surgical Burs

These hully group surgical burs with internal cooling system enable very smooth cut and prevent heat damages for bone.

Round burs



Round burs for bone cutting,  ruff cutting edges to prevent clogging.

Full group blades ensures excellent cutting efficiency.






Round Burs Internal Cooling

raundin1





Stainless steel   Autoclabvable(Up to 132℃)

Cooling fluid flow out blood thus operator can get clear view of operating spot.















SizeExternal Diameter(φd)Overall Length
Surgical Bur 473RF/031 Internal Coolingφ3.134.0㎜
Surgical Bur 473RF/040 Internal Coolingφ4.034.0㎜
Surgical Bur 473RF/050 Internal Coolingφ5.034.0㎜

Round Burs External Cooling

raund1









Stainless steel   Autoclabvable(Up to 132℃)













SizeExternal Diameter(φD)Overall Length
Surgical Bur 141RF/010 External Coolingφ1.034.0㎜
Surgical Bur 141RF/014 External Coolingφ1.434.0㎜
Surgical Bur 141RF/018 External Coolingφ1.834.0㎜
Surgical Bur 141RF/025 External Coolingφ2.534.0㎜
Surgical Bur 141RF/031 External Coolingφ3.134.0㎜
Surgical Bur 141RF/040 External Coolingφ4.034.0㎜
Surgical Bur 141RF/050 External Coolingφ5.034.0㎜








DR.Lindemann Bone Cutters



surgicalin1



Stainless steel   Autoclabvable(Up to 132℃)

Dr.Lindemann bone cutter has fully around blades.

DR.Lindemann Bone Cutters Internal Cooling



Cooling fluid flow out blood thus operator can get clear view of operating spot.  Prepare #40 K Reamers to clean internal cooling hold.





SizeExternal Diameter(φD)Length of cutting part(L1)Overall Length(L2)
Surgical Bur 471RF/023 Internal Coolingφ2.39.0㎜34.0㎜
Surgical Bur 167RF/023 Internal Coolingφ2.311.0㎜34.0㎜










DR.Lindemann Bone Cutters External Cooling

surgical1









Stainless steel   Autoclabvable(Up to 132℃)









SizeExternal Diameter(φD)Length(L1)Overall Length(L2)
Surgical Bur 163RF/014 External Coolingφ1.46.0㎜34.0㎜
Surgical Bur 164RF/018 External Coolingφ1.86.0㎜34.0㎜
Surgical Bur 166RF/021 External Coolingφ2.110.0㎜34.0㎜

Circular Knives

sakyura1




Stainless steel   Autoclabvable(Up to 132℃)

For Cutting soft tissue.Use with very low speed or by finger.Complete with finger grip for each piece.



SizeExternal Diameter(φD)Length of cutting part(L1)Overall Length(L2)
Circular Knife 3.3 External Coolingφ3.36.0㎜30.0㎜
Circular Knife 3.5 External Coolingφ3.56.0㎜30.0㎜
Circular Knife 4.0 External Coolingφ4.06.0㎜30.0㎜
Circular Knife 5.0 External Coolingφ5.06.0㎜30.0㎜

Drill Extention

ExtentionStainless steel Autoclavable(Up to 132℃)

Can be elongate drill in 16㎜.

With internal cooling system.

Without internal system.





SizeLength of the joint(L1)Overall Length
Drills Extension Internal Cooling12.0㎜30.0㎜
Drills Extension External Cooling13.5㎜30.0㎜
